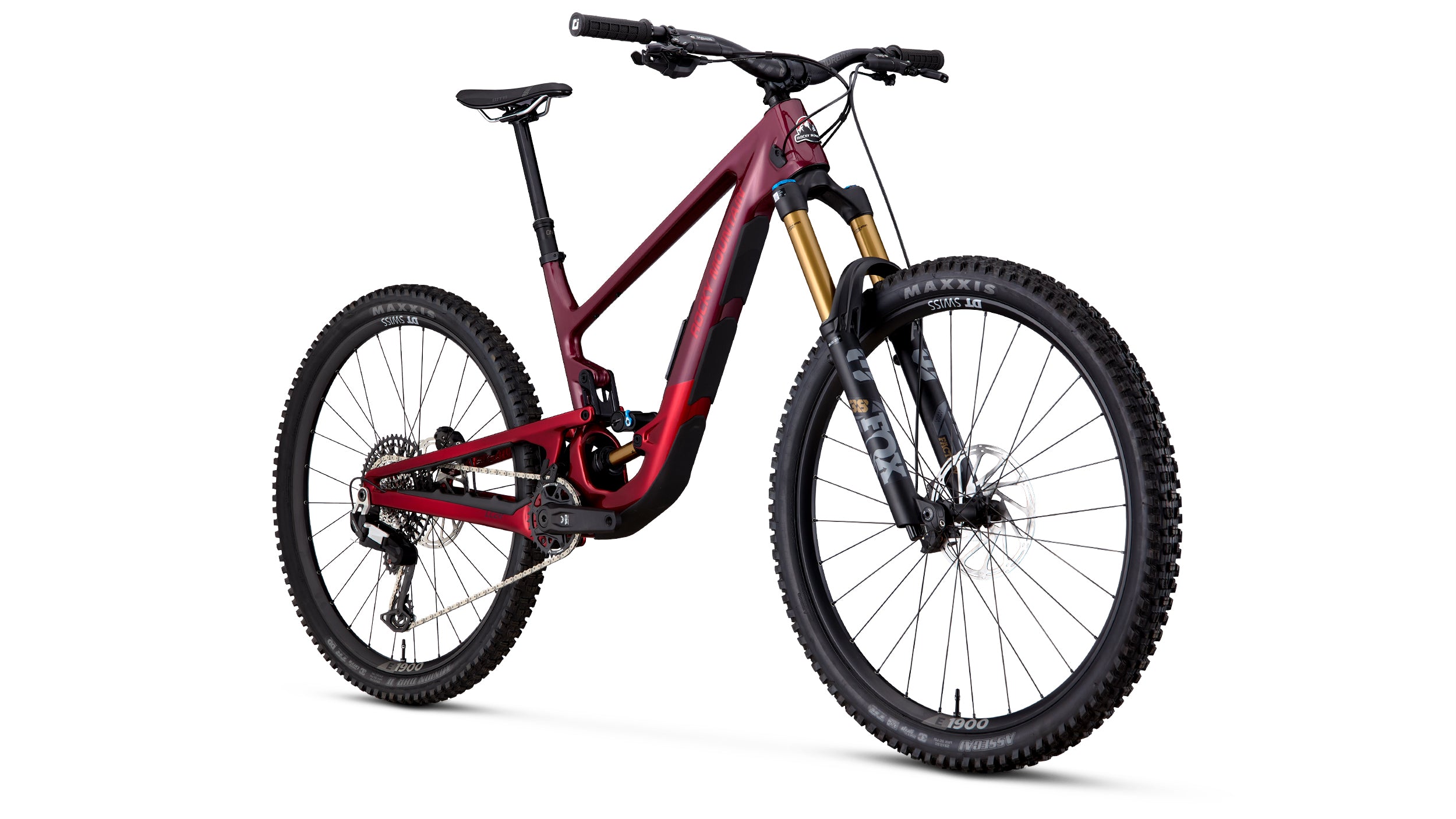

Le Rocky Mountain Altitude Carbon 70 est la reference de l’enduro carbone : cadre SMOOTHWALL 160mm, fourche Fox 38 EVOL GRIP X2 Factory 170mm et amortisseur Fox Float X2 Factory pour avaler les descentes les plus engagees.
- Cadre carbone SMOOTHWALL 160mm — geometrie RIDE-4 ajustable, rangement Penalty Box 2.0, boitier filete

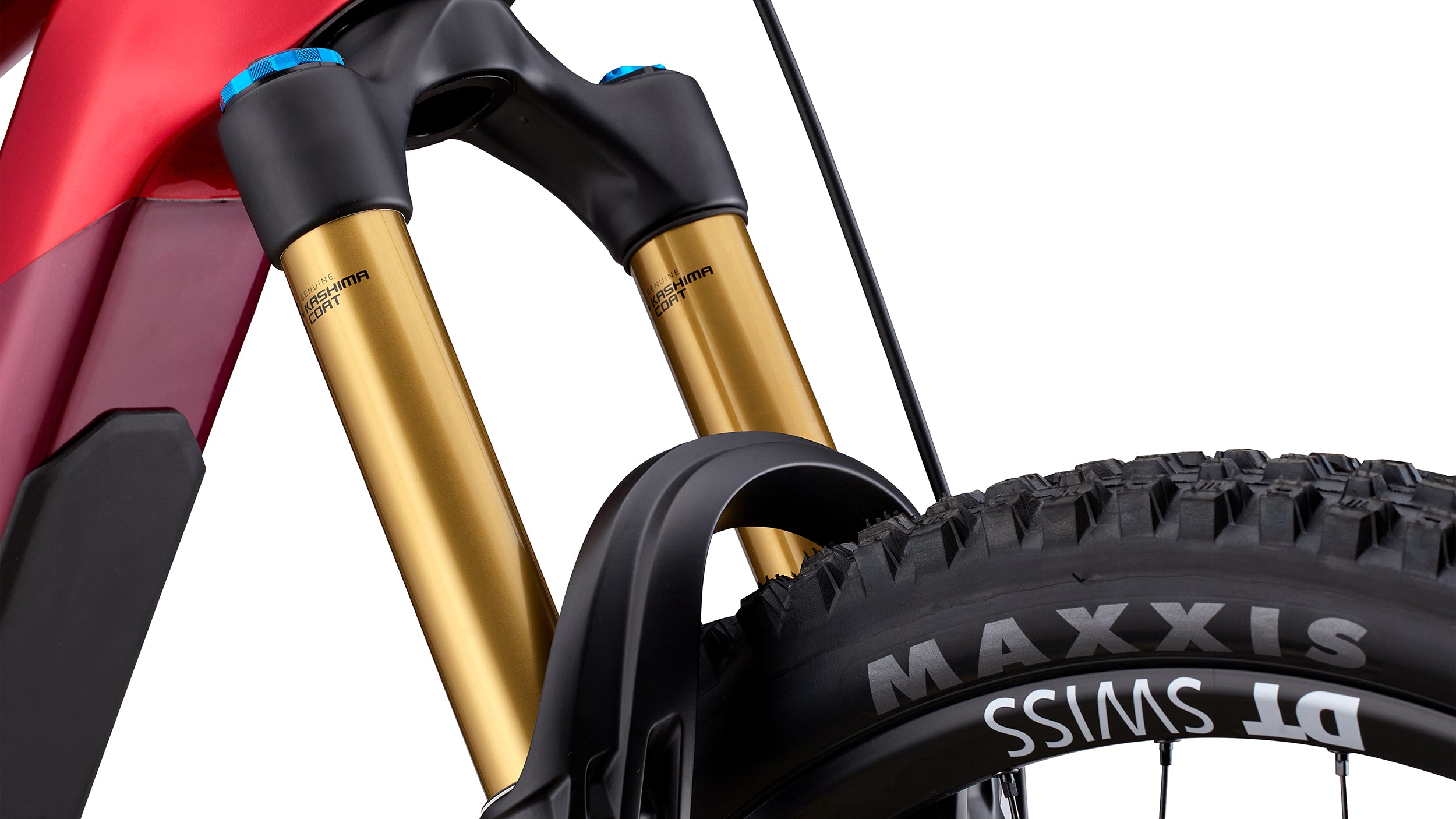

- Fourche Fox 38 Float EVOL GRIP X2 Factory 170mm — la reference enduro Fox Factory

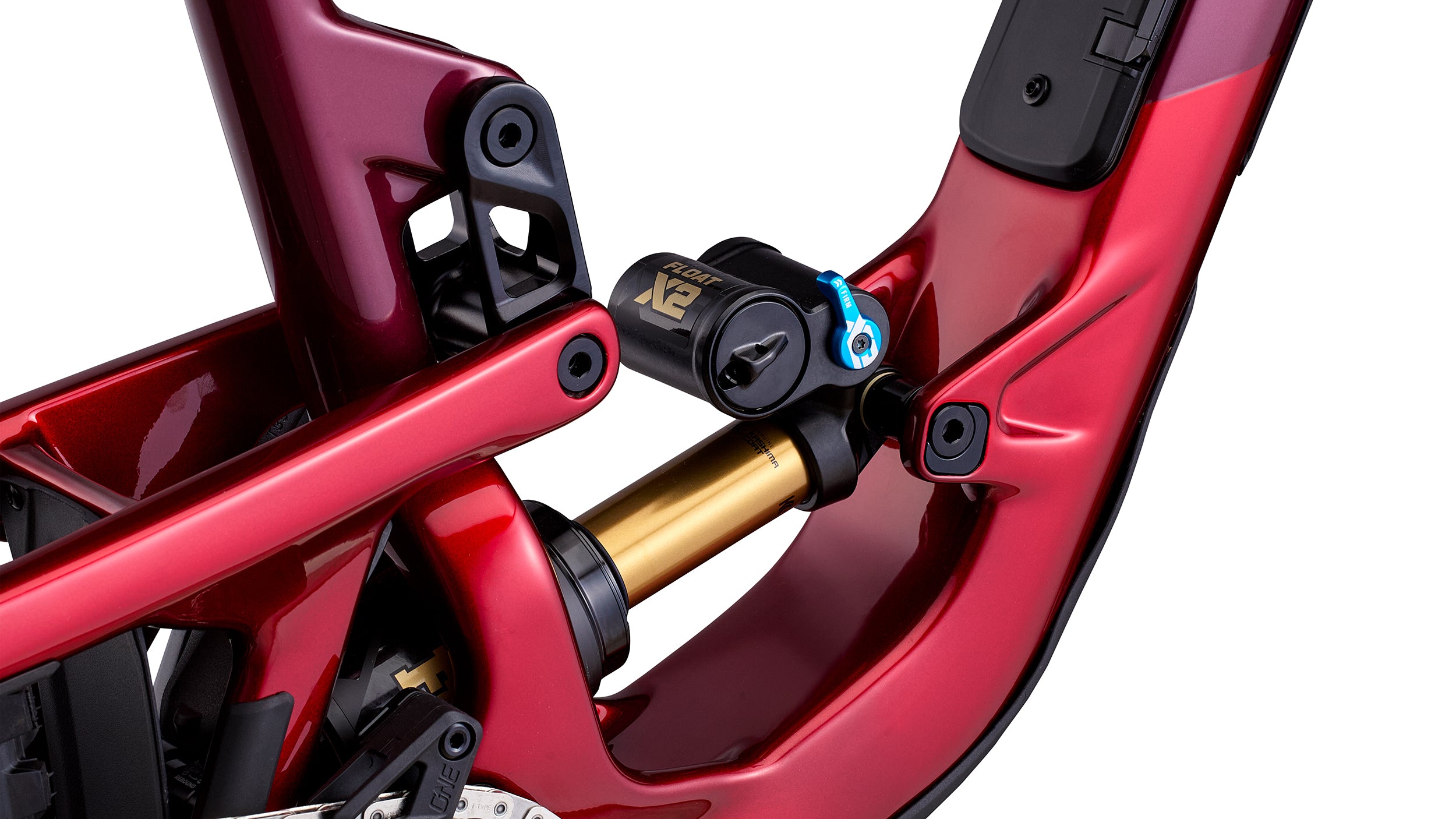

- Amortisseur Fox Float X2 Factory 160mm — regle specifiquement pour chaque taille
- SRAM Eagle 90 Transmission 12v — electronique sans fil, cassette GX Eagle 10-52T
- Freins SRAM Maven Silver Stealth 4 pistons — patins metal, puissance maximale
- Pneus Maxxis Assegai 2.5 AV / Minion DHR II 2.4 AR — MaxxGrip / DD Tubeless Ready
- Tige telescopique OneUp V3 30.9mm — jusqu’a 240mm de course en XL

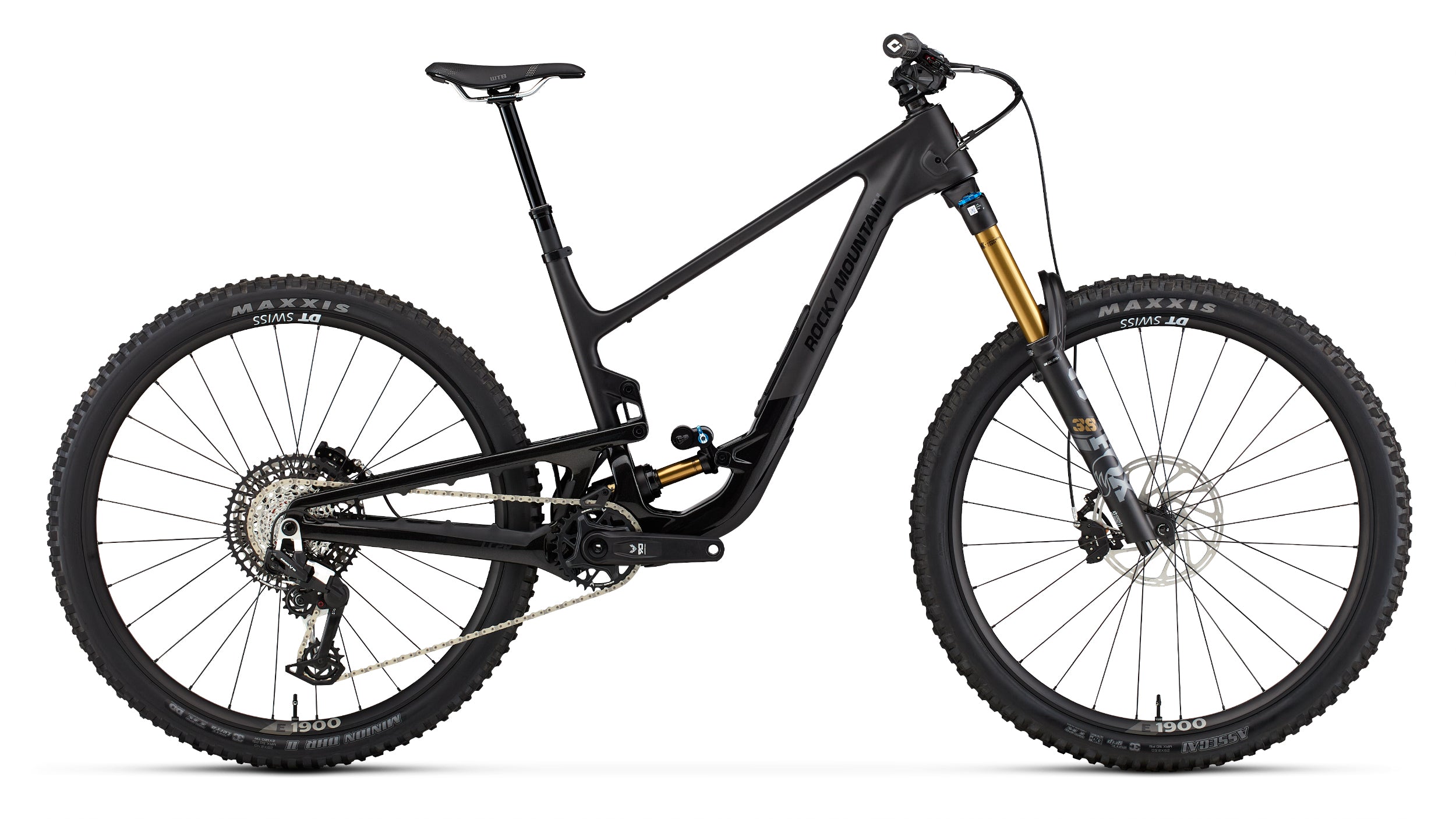

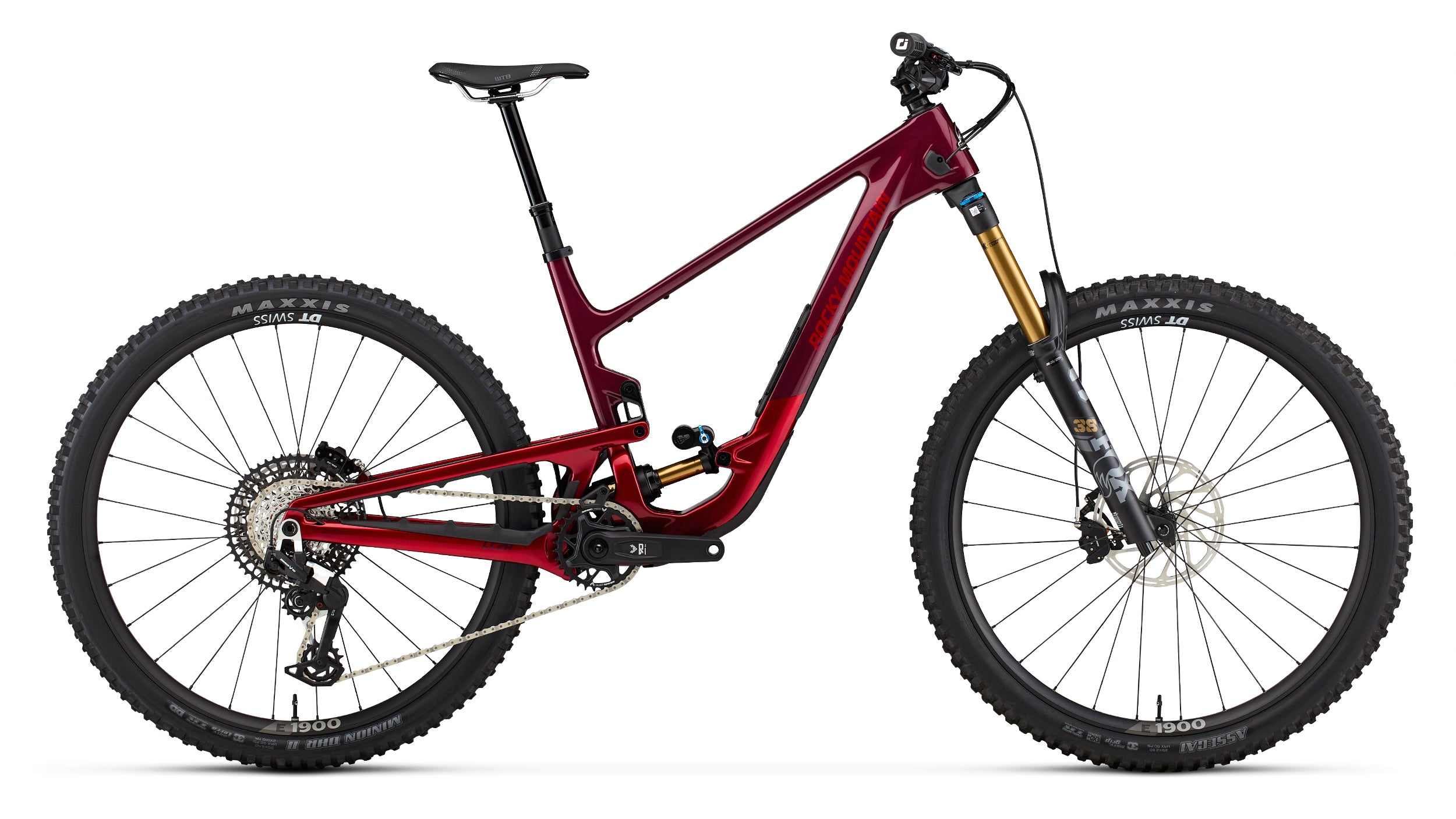

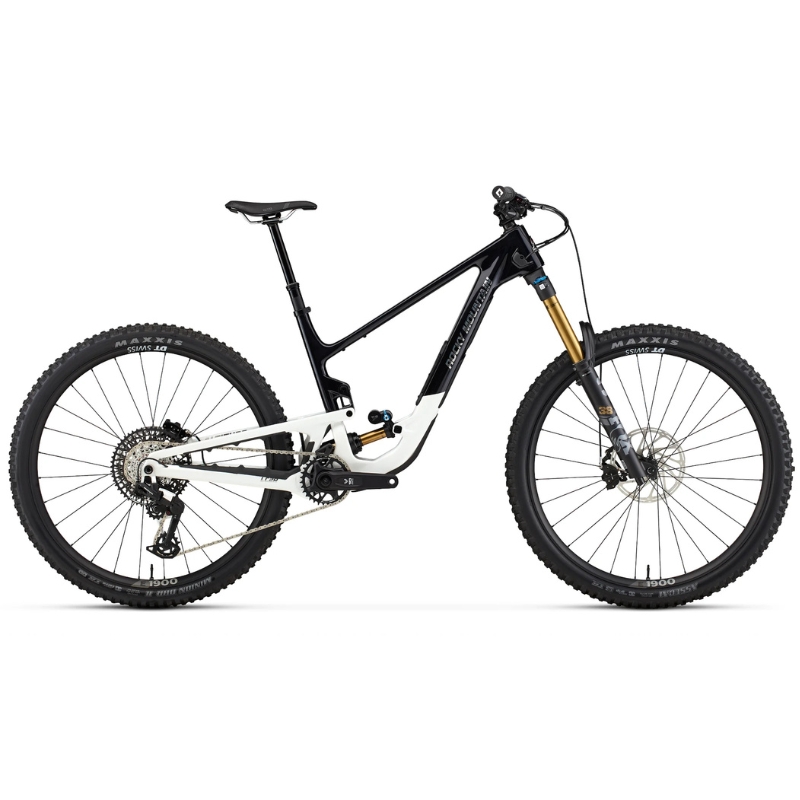

Disponible en 3 coloris. Compatible roues 29 pouces, MX et 27.5 pouces.
Guide des tailles
| Taille | Hauteur pilote | Reach (mm) | Stack (mm) |
|---|---|---|---|
| SM | 163 – 172 cm | – | – |
| MD | 170 – 180 cm | 455 | 630 |
| LG | 178 – 188 cm | 480 | 639 |
| XL | 186 – 196 cm | 510 | 653 |
Composants
| Cadre | Rocky Mountain SMOOTHWALL Carbon | 160mm | RIDE-4 | Penalty Box 2.0 | Threaded BB |
| Fourche | Fox 38 Float EVOL GRIP X2 Factory 170mm | 27.5=37mm / 29=44mm offset |
| Amortisseur | Fox Float X2 Factory | 160mm | SM=210x55mm | MD-XL=230x60mm |
| Freins | SRAM Maven Silver Stealth 4 pistons | patins metal |
| Transmission | SRAM Eagle 90 Transmission 12 vitesses |
| Pedalier | SRAM Eagle 90 | 32T | SM-MD=165mm / LG-XL=170mm |
| Cassette | SRAM GX Eagle Transmission 10-52T |
| Pneus | AV : Maxxis Assegai 2.5 WT MaxxGrip EXO+ TR | AR : Minion DHR II 2.4 WT DD TR |
| Tige de selle | OneUp V3 30.9mm | SM=150mm | MD=180mm | LG=210mm | XL=240mm |
| Selle | WTB Solano Fusion Form 142 | rails Cromoly |
| Cintre | Race Face Turbine 780mm | 40mm rise | 35mm clamp |
Geometrie (roues 29 pouces)
| MD | LG | XL | |
|---|---|---|---|
| Reach (mm) | 455 | 480 | 510 |
| Stack (mm) | 630 | 639 | 653 |
| Angle direction | 63.4 deg | 63.4 deg | 63.4 deg |
| Angle tube selle | 77.4 deg | 77.4 deg | 77.4 deg |
| Base arriere (mm) | 440 | 450 | 450 |
| Empattement (mm) | 1242 | 1281 | 1318 |
