Specs
Cadre
Cadre Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

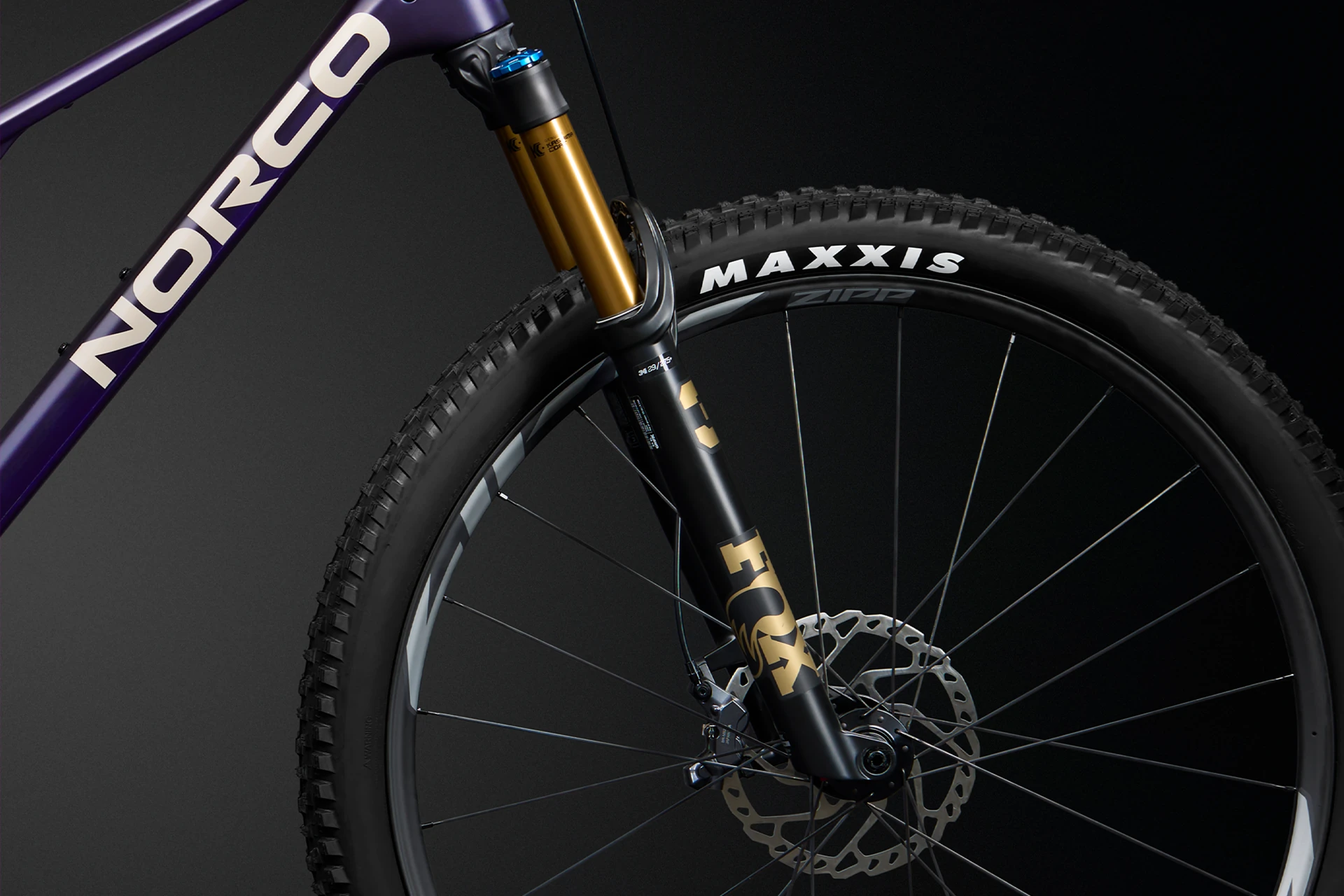

Fourche Fox 34SL Factory Float, Grip X, 3 pos Lever HSC/LSC/LSR, 130mm, 44mm offset

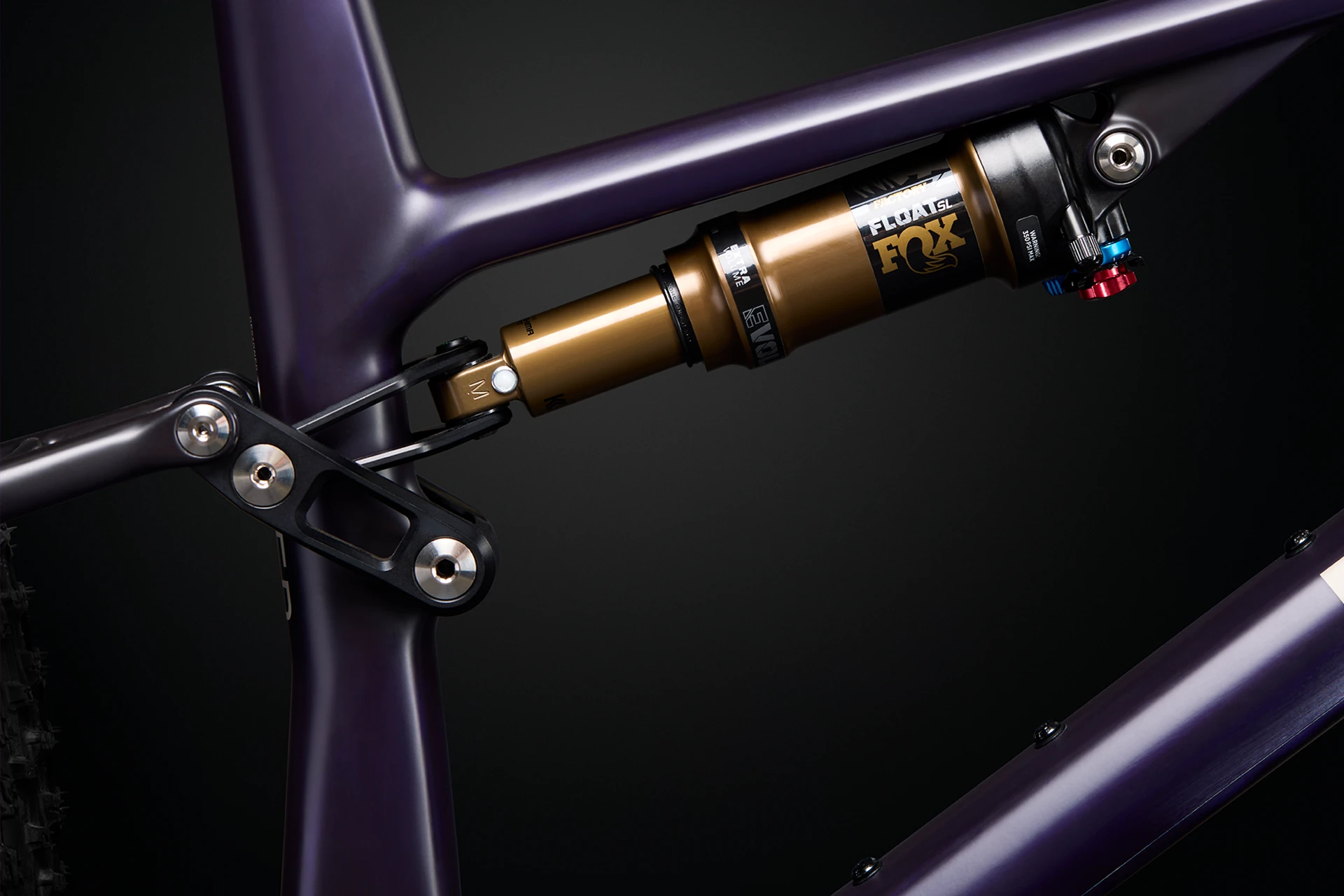

Amortisseur Fox Factory Float SL, 190x45mm, standard

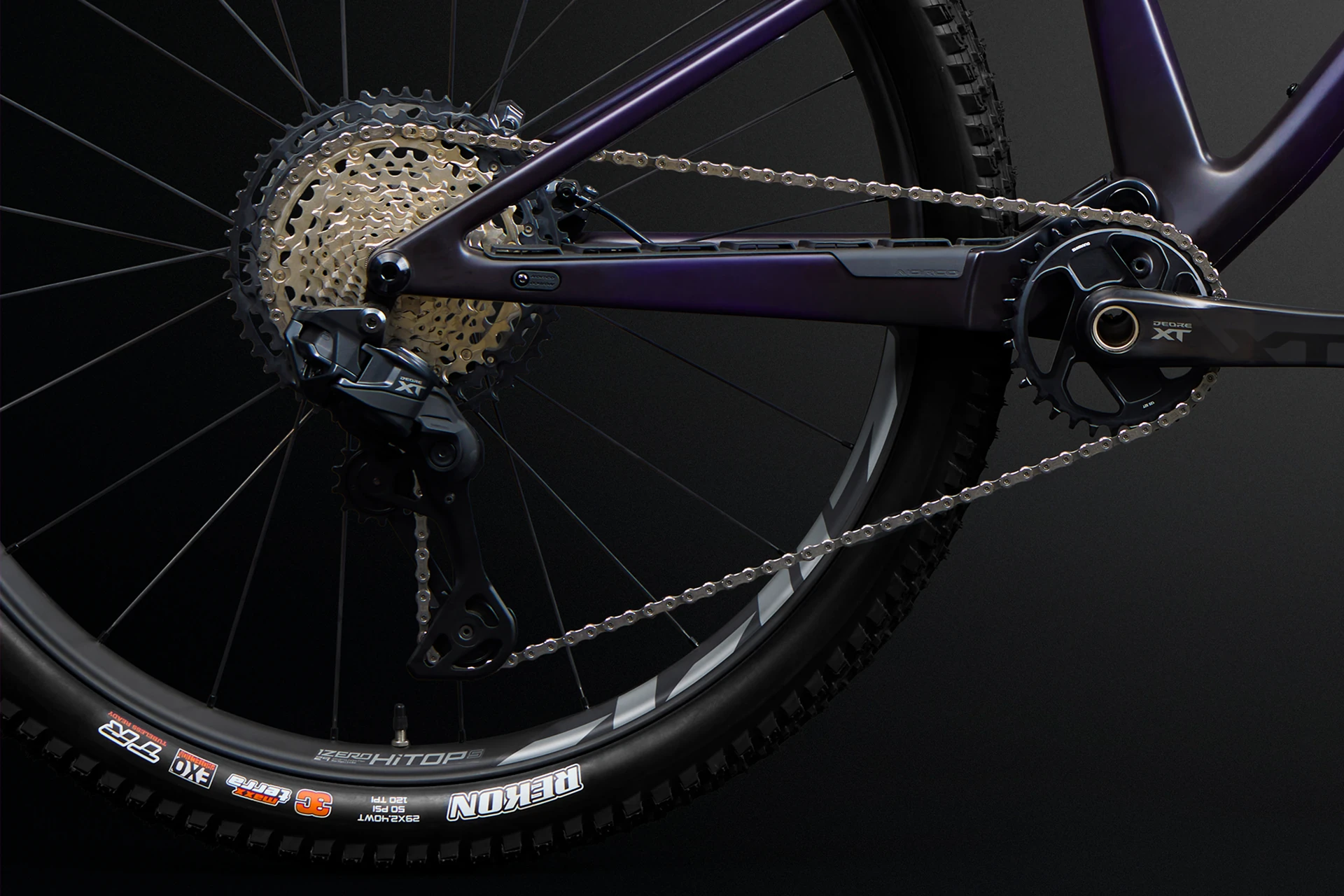

Transmission
Manette Arrière Shimano Deore XT Di2 SW-M8250-IR, 12sp
Dérailleur arrière Shimano Deore XT Di2 RD-M8250, 12sp, SGS
Pédalier Shimano Deore XT FC-M8200, 32T, CL55, 165mm (S1), 170mm (S2,S3), 175 (S4,S5)
Jeu de pédalier Shimano BB-MT501, BSA 73mm
Cassette Shimano Deore XT CS-M8200-12, 10-51T, 12sp
Chaîne Shimano Deore XT CN-M8100, 12sp
Brakes
Frein avant Shimano Deore XT BL-M8200, Metallic pads
Disque avant Shimano SM-RT66, 180mm, 6-bolt
Frein arrière Shimano Deore XT BL-M8200, Metallic pads
Disque arrière Shimano SM-RT66, 180mm, 6-bolt
Leviers de Frein Shimano Deore XT BL-M8220
Composants

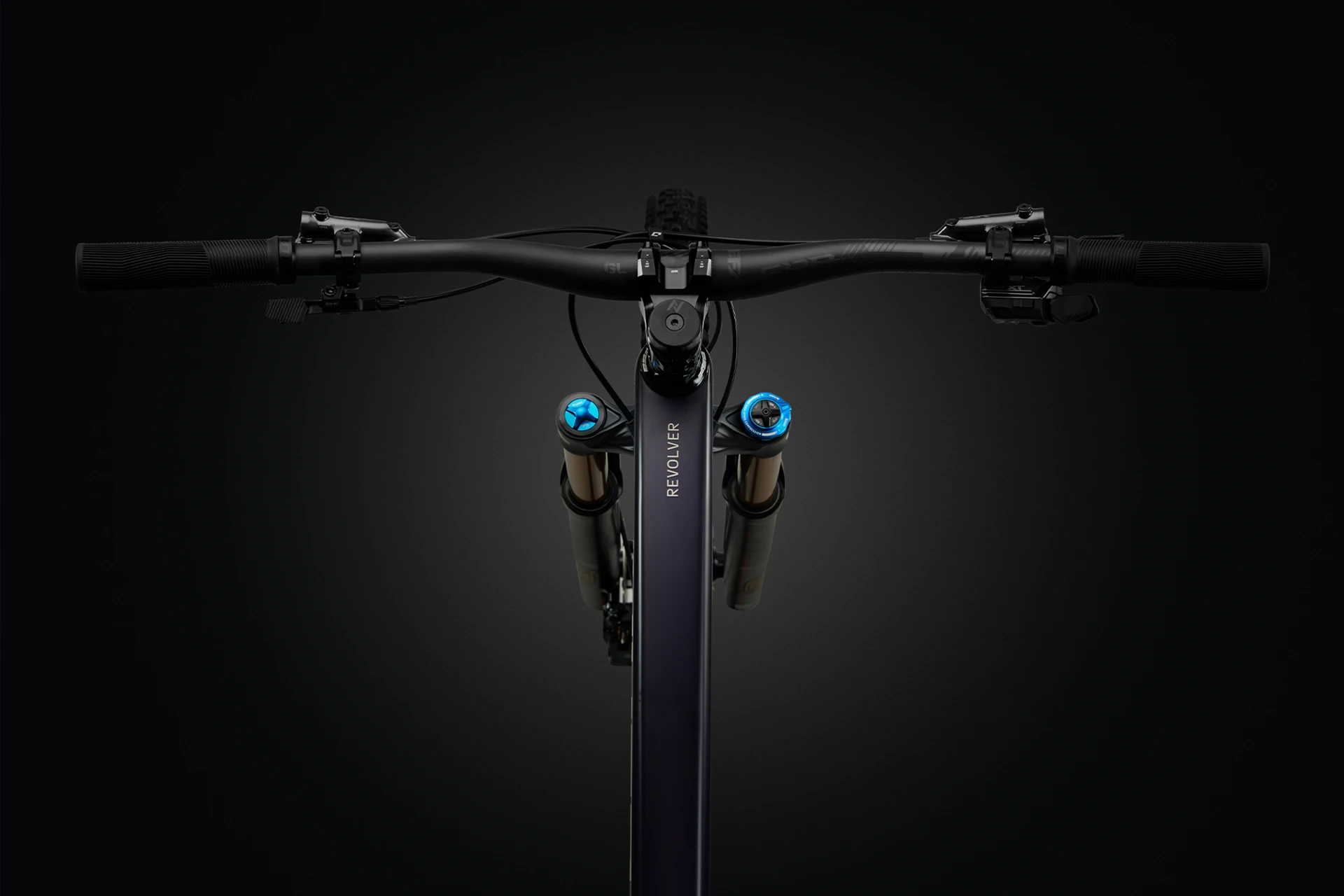

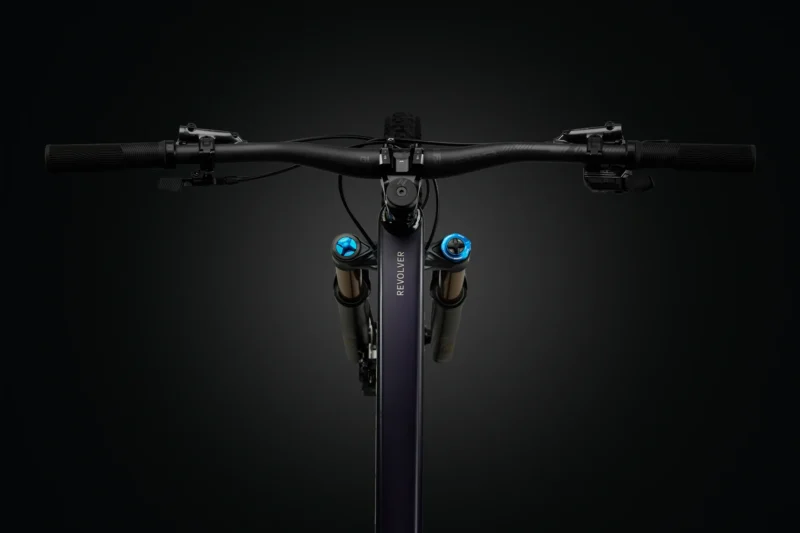

Guidon Race Face ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm rise
Potence Alloy CNC, 50mm Length, 35mm Clamp
Tige de Selle TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) – 200mm (S5)
Jeu de direction FSA No 42/48ACB Integrated Headset, Tapered 1-1/8″ – 1.5″
Selle Fizik Terra Ridon MG Rail
Poignées/guidoline WTB Wavelength
Collier de tige de selle Norco Alloy Nutted Clamp, 34.9mm ID
Roues
Moyeu avant Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
Moyeu arrière Zipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt
Jantes Zipp 1Zero Hitop S Carbon, 30mm ID, 29″
Pneu avant Maxxis New Forekaster, 3C Maxx Terra EXO, 29×2.40″
Pneu arrière Maxxis Rekon, 3C Maxx Terra EXO, 29×2.40″
Rayons/écrous CX-Sprint
Valves Zipp tubeless valves
Scellant Stans 250ml sealant
Poids
Poids 12.04 kg (26.5 lbs)
Weight Size S3
