Construisez pour voir GRAND !
BOSCH CX. FOX FACTORY. AUCUN COMPROMIS !
PLATEFORME CARBONE. COUPLE BOSCH CX.
CONTRÔLE DU NIVEAU DU PODIUM D’USINE

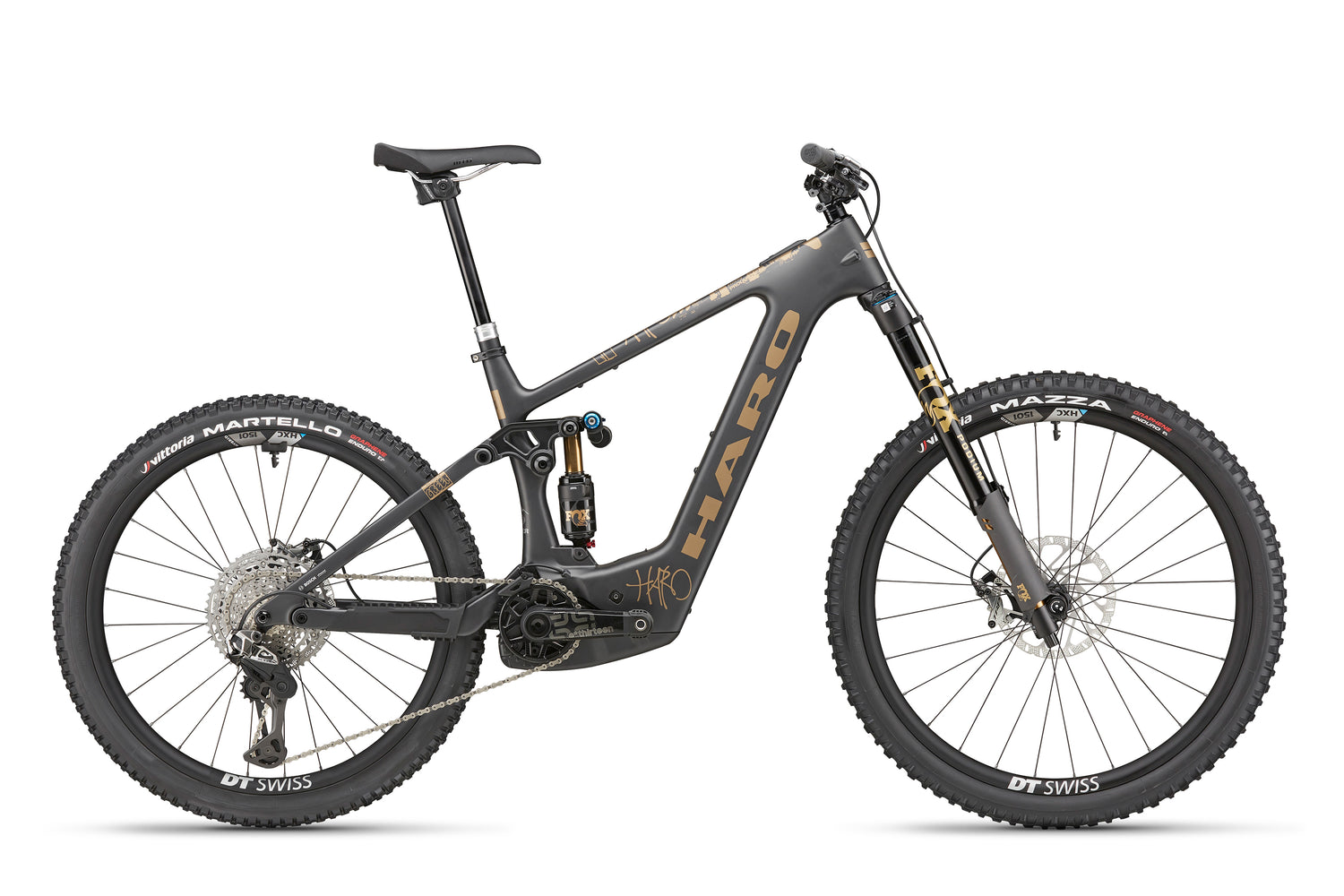

Haro – E Greer Carbon Top Shelf
10499,00 €
L’ eGreer Carbon – Top Shelf est conçu pour des performances enduro sans compromis. Avec 170 mm de débattement, le puissant moteur Bosch Performance Line CX et la suspension FOX Factory de compétition, ce vélo est fait pour les descentes engagées, les longues descentes et la vitesse maximale.
Cadre en carbone, transmission sans fil XTR Di2, roues hybrides carbone DT Swiss : rien n’a été laissé au hasard. L’eGreer TS n’est pas un simple VTT de trail équipé d’un moteur. C’est un véritable enduro haute performance.
🔒 Paiement sécurisé
| Poids | 19 kg |
|---|---|
| Marque | Haro |
| Choisir une couleur | Noir / Or |
| Choisir une taille | L, M, S, XL |
| Matière | Carbone |
| Batterie | 600 Wh |
| Motorisation | Bosch Performance Line CX |
Spécifications techniques
| Frame | eGreer Carbon Full Suspension, 1-1/8″ – 1-1/5″ Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger |
|---|---|
| Fork | FOX 36 Podium suspension fork (2026), 29″, Factory Series, 170 mm travel, GRIP X2 damper with HSC/LSC and HSR/LSR adjustment, Kashima coating, 20 × 110 mm thru axle, 1.5″ tapered steerer, 58 mm head tube length, 44 mm rake |
| FRAME SHOCK | FOX FLOAT X2 rear shock (2026), air shock, Factory Series, 2-position adjust, Trunnion mount, 205 × 65 mm, 4 cc volume spacer, CS60 compression tune, RL40 rebound tune |
| Weight | 17,6 Kg |
| E COMPONENTS | |
| Motor | BOSCH PERFORMANCE LINE CX (25km/h / 20 mph) |
| Battery | Bosch PowerTube 600 battery (600 Wh) |
| Display | N/A |
| Remote | – |
| Lights | – |
| DRIVETRAIN | |
| Cranks | e*thirteen e*spec Race Carbon crank (CS4-ESP-R02), 27.8 mm offset, 165 mm length |
| Pedals | N/A |
| Chain | Shimano CN-M9100 chain, 122 links |
| Bottom Bracket | – |
| Front Derailleur | – |
| Rear Derailleur | Shimano XTR Di2 rear derailleur (RD-M9260), 12-speed, max 51T |
| SHIFTER | Shimano XTR shift lever (SW-M9250-R), wireless |
| Freewheel/Cassette | Shimano XTR cassette (CS-M9200-12), 12-speed, 10-51T, Micro Spline |
| WHEELS | |
| Tires | Vittoria Mazza 29×2.4 Enduro tire, full black, G2.0, 100 TPI |
| FRONT WHEEL | DT Swiss HXC 1501 Hybrid carbon wheel, 29″/700C (622 mm), 25 mm internal width, 30 mm disc, 6-bolt, 20 mm thru-axle, 110 mm Boost, SPLINE® |
| REAR WHEEL | DT Swiss HXC 1501 Hybrid MTB carbon wheel, 27.5″/650B (584 mm), 25 mm internal width, 30 mm disc, 6-bolt, 12 mm thru-axle, 148 mm Boost, Shimano Micro Spline, Ratchet EXP OS 30, SPLINE® |
| WHEELSET | DT Swiss HXC 1501 Hybrid MTB Carbon |
| BRAKING SYSTEM | |
| Brakes | TRP HD-M9040 EVO Pro hydraulic brake, 4-piston caliper with hybrid pistons, 2.3 mm rotor thickness |
| OTHER COMPONENTS | |
| GRIPS/ TAPE | Wavelength handlebar grips (W175-0150), 30/32 mm tapered, single-bolt lock-on, 13 mm rise |
| Handlebar | Race Face SixC carbon handlebar, 35 mm clamp, 820 mm width, 35 mm rise |
| Stem | Race Face Turbine-R stem, 35 mm clamp, 32 mm length |
| Headset | FSA anodized black stem |
| Saddle | WTB HLX saddle (W165-4394), microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners |
| Seat Post | Kind Shock LEV Circuit wireless dropper seatpost, 34.9 mm, 497 mm total length / 200 mm (170 mm in size M) travel, silver collar |
| Seat Clamp | Forged Aluminium Seat Clamp CL-H2C Ø38.9 |
| Extras | Includes Tubeless Valves and Sealant |
Géométrie
| SIZE | Medium | Large | X-Large |
|---|---|---|---|
| Seat Tube (C-T) | 410mm | 448mm | 473mm |
| Top Tube (Effective) | 593mm | 620mm | 646mm |
| Head Tube Angle | 63.8° | 63.8° | 63.8° |
| Seat Tube Angle | 78° | 78° | 78° |
| Chainstay Length | 435mm | 435mm | 435mm |
| BB Height | 30mm | 30mm | 30mm |
| Standover | 701mm | 714mm | 714mm |
| Stack Height | 624mm | 633mm | 642mm |
| Reach | 460mm | 485mm | 510mm |
| Axle to Crown | 584mm | 584mm | 584mm |
| Fork Offset | 44mm | 44mm | 44mm |
| Wheel Size | 29F / 27.5R | 29F / 27.5R | 29F / 27.5R |
