La précision au service de la performance !
XTDI2. FOX. PERFORMANCE PURE SUR SENTIER
PLATEFORME CARBONE. TRANSMISSION BOSCH SX.
MAÎTRISÉ. CONFIANT. CAPABLE.

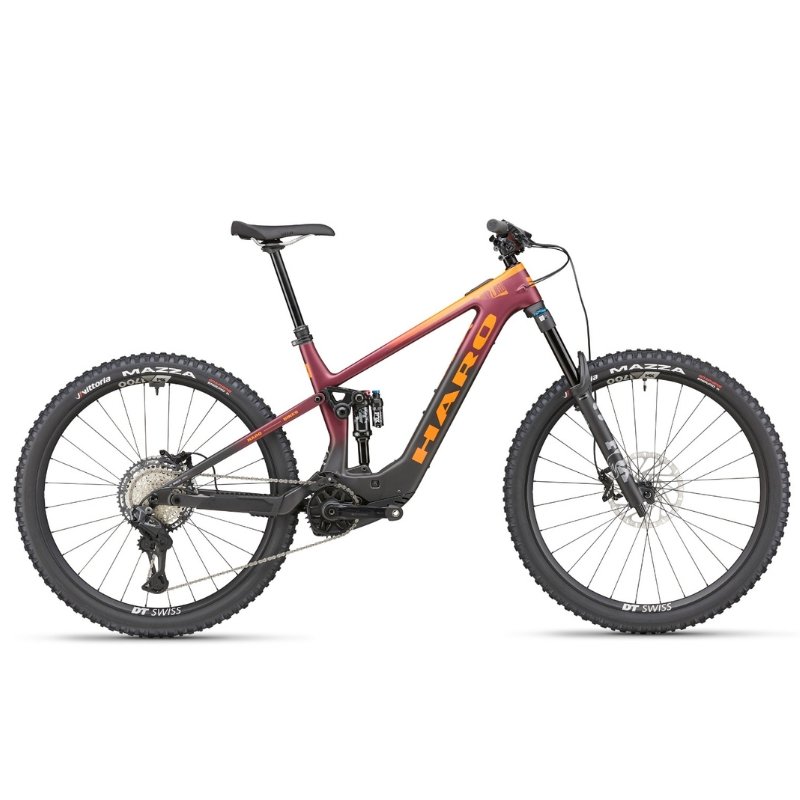

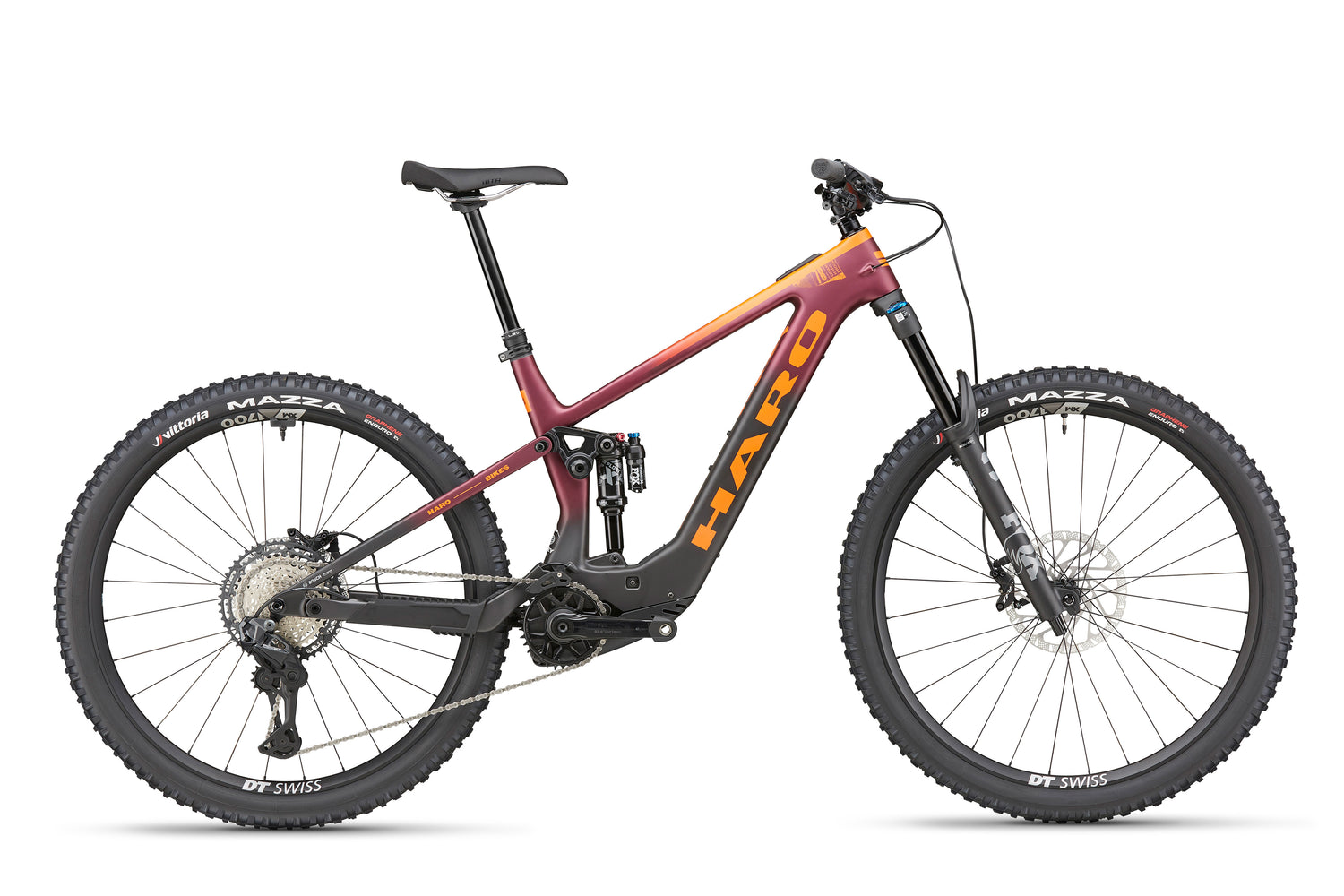

Haro – E Daley Carbon 1
7499,00 €

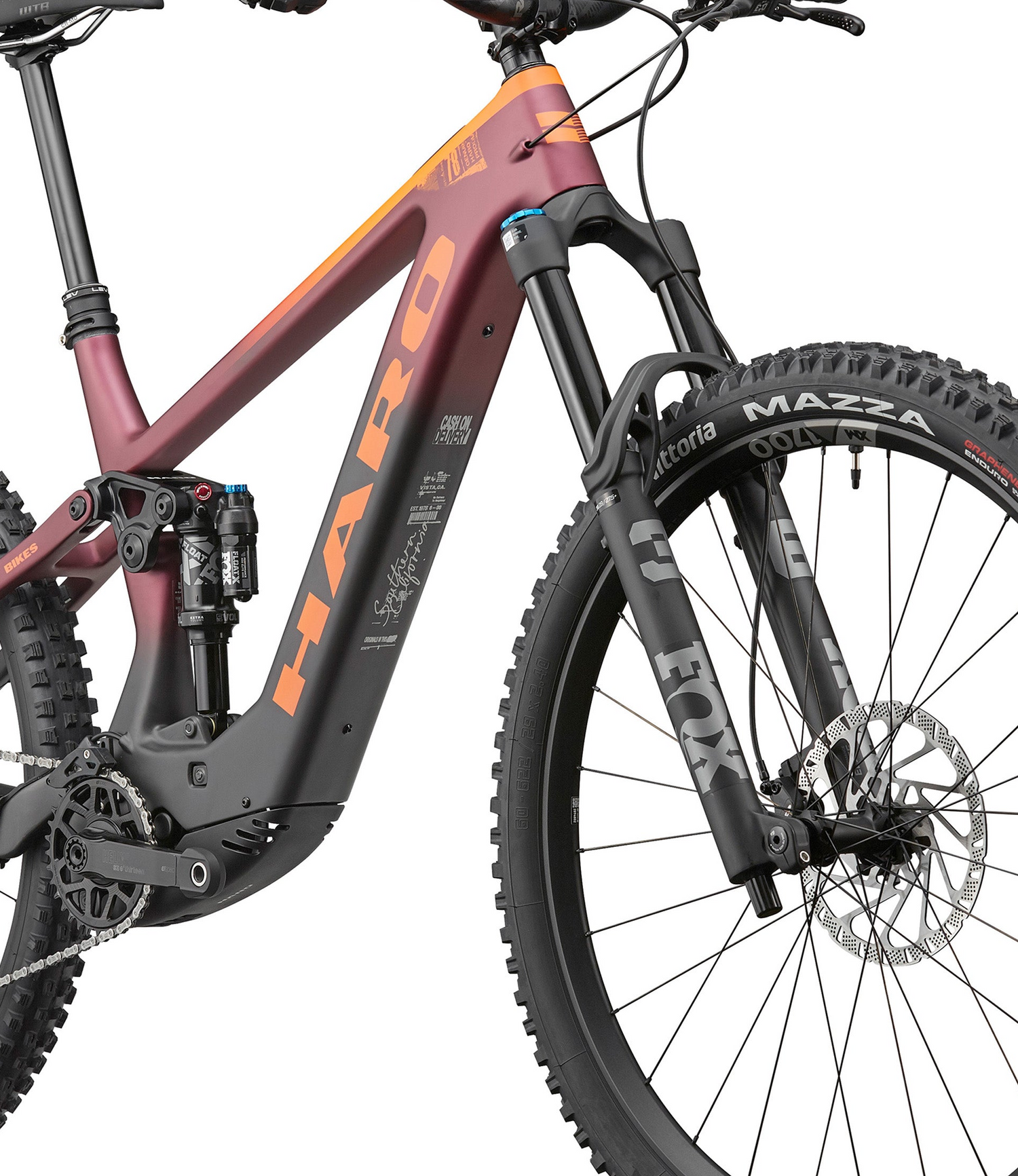

L’ eDaley Carbon 1 allie précision électronique et ADN trail sans compromis à un niveau de performance accessible. Son cadre léger en carbone, son moteur Bosch Performance Line SX et sa transmission sans fil Shimano XT Di2 combinent technologie moderne et sensations de pilotage directes et naturelles.
Avec un débattement de 140/150 mm, une fourche FOX 36 à l’avant et de puissants freins TRP DH-R EVO, ce vélo est conçu pour les cyclistes qui recherchent la performance sans fioritures inutiles.
Technologie de pointe. Performances exceptionnelles sur les sentiers.
🔒 Paiement sécurisé
| Poids | 19 kg |
|---|---|
| Marque | Haro |
| Choisir une couleur | Bordeaux uni |
| Choisir une taille | L, M, S, XL |
| Matière | Carbone |
| Batterie | 400 Wh |
| Motorisation | Bosch Performance Line SX |
Spécifications techniques
| FRAMESET | |
|---|---|
| Frame | eDaley Carbon Full Suspension 140mm / 150mm travel, 1-1/8″ – 1-1/5″ Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger |
| Fork | Fox 36 FLOAT, 27.5″ (size S) 29″ (size M, L, XL), 150 mm travel, P-S, Grip, 3-position adjust, Matte Black, Neutral logo, 110 mm Boost, 44 mm offset |
| FRAME SHOCK | FOX FLOAT X rear shock, Trunnion mount, EVOL LV, 185×52.5 mm, 2-position adjust, standard damping |
| Weight | 17,6 Kg |
| E COMPONENTS | |
| Motor | Bosch Performance SX (25km/h / 20mph) |
| Battery | Bosch 400 WH integrated battery |
| Display | N/A |
| Remote | – |
| Lights | – |
| DRIVETRAIN | |
| Cranks | e*thirteen e*spec Helix Race crankset, alloy, 160 mm (size S) 165 mm (others) length, 21.5 mm offset |
| Pedals | N/A |
| Chain | Shimano CN-M8100 chain, 12-speed, 122 links |
| Bottom Bracket | – |
| Front Derailleur | – |

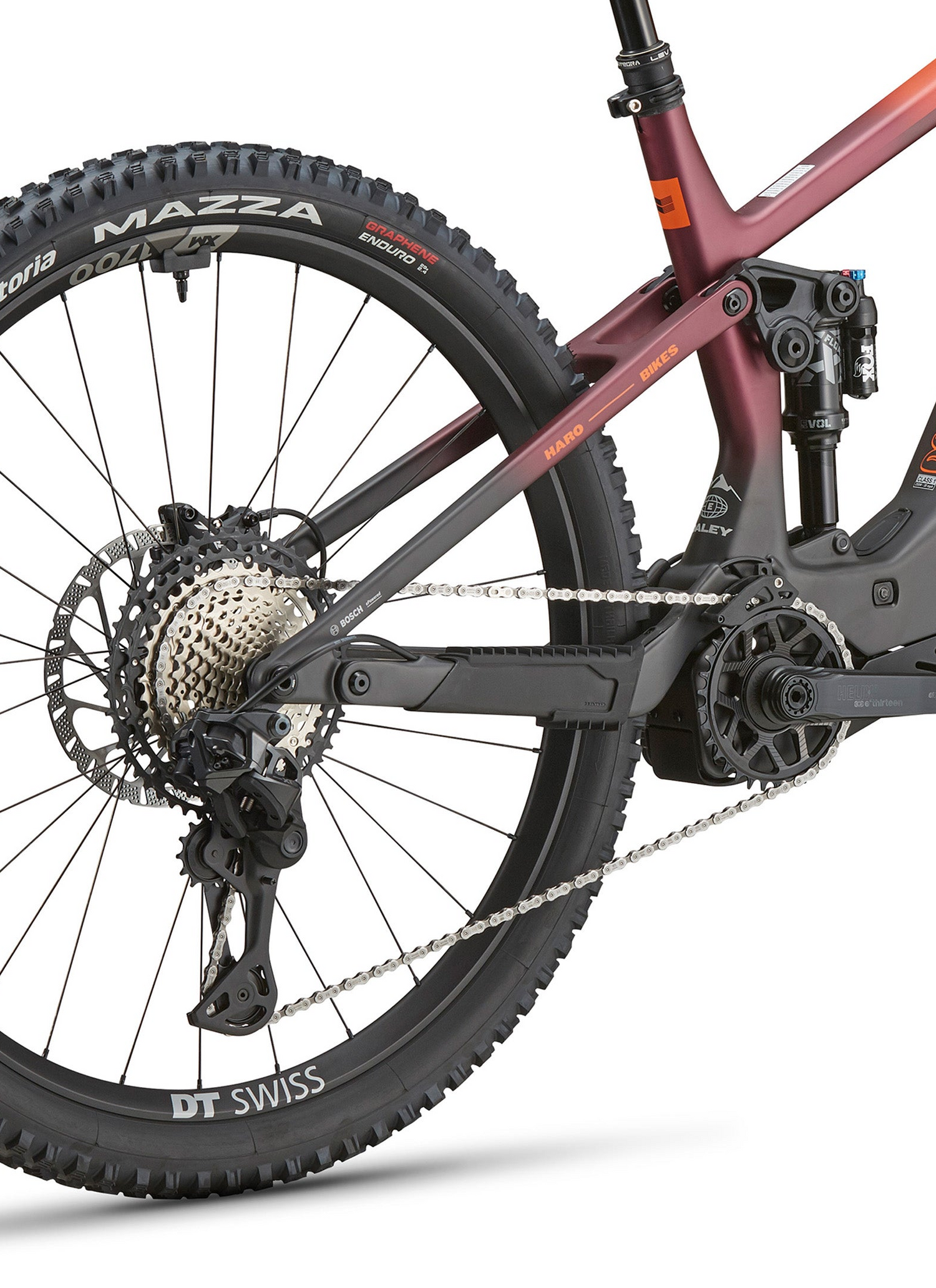

| Rear Derailleur | Wireless Shimano Deore XT RD-M8260 Di2 rear derailleur, SGS, 12-speed |
| SHIFTER | Shimano XT DI2 SW-M8250 Wireless |
| Freewheel/Cassette | Shimano XT CS-M8200-12 ,10-51T ,12S MICRO SPLINE |
| WHEELS | |
| Tires | Rear: Vittoria Martello Enduro tire, 27.5″(S) 29″ (M,L,XL) × 2.4, full black, Front: Mazza Enduro tire, 27.5″(S) 29″ (M,L,XL × 2.4, full black, G2.0 compound, 120 TPI |
| FRONT WHEEL | DT Swiss XM 1700 SPLINE® wheel, 27.5″(S) 29″ (M,L,XL) , 21 mm internal width, 6-bolt disc, IS mount |
| REAR WHEEL | DT Swiss XM 1700 SPLINE® wheel, 27.5″(S) 29″ (M,L,XL) , 30 mm internal width, 12×148 mm Boost thru-axle, Micro Spline |
| WHEELSET | XM 1700 SPLINE® |
| BRAKING SYSTEM | |
| Brakes | TRP HD-M846 DH-R EVO hydraulic brake, 4-piston caliper with hybrid pistons, 2.3 mm rotor thickness |
| OTHER COMPONENTS | |
| GRIPS/ TAPE | Wavelength handlebar grips (W175-0150), 30/32 mm tapered, single-bolt lock-on, 13 mm rise |
| Handlebar | Race Face Turbine handlebar, 35 mm clamp, 800 mm width, 40 mm rise, Stealth finish |
| Stem | Race Face Turbine-R stem, 35 mm clamp, 32 mm length |
| Headset | FSA anodized black stem |
| Saddle | WTB HLX saddle (W165-4394), microfiber cover, Flex-Tuned shell, standard WTB rails, ABR corners |
| Seat Post | Kind Shock LEV Integra dropper seatpost (C239), 34.9 mm diameter, 200 mm (170 mm in size M) travel, 533 mm total length |
| Seat Clamp | Forged Aluminium Seat Clamp CL-H2C Ø38.9 |
| Extras | Includes Tubeless Valves and Sealant |
Géométrie
| SIZE | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube (C-T) | 361mm | 410mm | 448mm | 473mm |
| Top Tube (Effective) | 533mm | 590mm | 617mm | 644mm |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat Tube Angle | 78° | 78° | 78° | 78° |
| Chainstay Length | 428mm | 445mm | 445mm | 445mm |
| BB Height | 23mm | 33mm | 33mm | 33mm |
| Standover | 691mm | 685mm | 705mm | 705mm |
| Stack Height | 579mm | 610mm | 619mm | 628mm |
| Reach | 430mm | 460mm | 485mm | 510mm |
| Axle to Crown | 544mm | 561mm | 561mm | 561mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Wheel Size | 27.5F / 27.5R | 29F / 29R | 29F / 29R | 29F / 29R |
